Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh

Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh
Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh
Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh

Grande immagine :  Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh

Dettagli:
Luogo di origine: Cina
Marca: Jiayao
Certificazione: ISO9001:2008 COC
Numero di modello: Torre del monopolio
Termini di pagamento e spedizione:
Quantità di ordine minimo: 4 tonnellate
Prezzo: US$1600,1-100Tons;US$1000,>=100 Tons
Imballaggi particolari: Confezionati in scatole di legno o confezionati con fogli galvanizzati
Tempi di consegna: 15 giorni
Termini di pagamento: L/C, T/T
Capacità di alimentazione: 500 tonnellate al mese
Contatto Ora chiacchieri

Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh

descrizione
Standard: ISO9001:2008 Materiale: Q345B/A572
Certificazione: ISO9001:2008 COC Nome del prodotto: Torre unipolare zincata a caldo 5G Wifi Telecom Torre di comunicazione sul tetto
Altezza: 5-85M Velocità del vento: >=60m/s
Tutta la vita: Più di 25 anni Codice di progettazione: ANSI/TIA-222-G/H/F, EN 1991-1-4 e EN 1993-3-1
Struttura: Torre del monopolio Colore: Personalizza
Tipo di fornitura: Produttore Apparecchi per le antenne: 2 a 4 pezzi
Diametro superiore: 0,6 metri Applicazione: Rete cellulare, trasmissione radio
Sito di approvvigionamento: Produttore forma: Singolo tubo
Trattamento superficiale: Hot galvanizzato Tipo di fornitura: Produttore
Trattamento superficiale Hod: Zincatura a caldo polo di antenna: 3-10
Metodo di installazione: Assemblaggio a bullone

JIAYAO CO.,LTD

A monopole telecom tower (often called a telecom monopole) is a single-shaft, self-supporting structure tailored for urban and densely populated areas, defined by its compact cylindrical or polygonal shape. Unlike open-truss lattice towers, this tower features a solid/semi-solid single shaft—making it visually unobtrusive and ideal for space-constrained, aesthetic-sensitive locations.

Product Description

1.key Details:
Place of Origin: Hebei, China (Mainland) ; Brand Name: Jaoyao or OEM ; Model Number: Telecom Tower
Surface treatment: Hot Dip Galvanizied or painted.
2.Packaging & Delivery:
Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements.
Deliver:Shipped in 20 days after payment from Tianjin port
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum.

3. Technical Data
Design

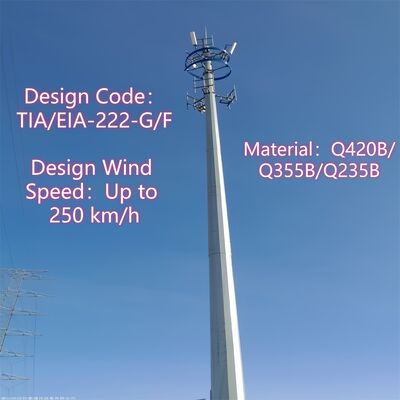

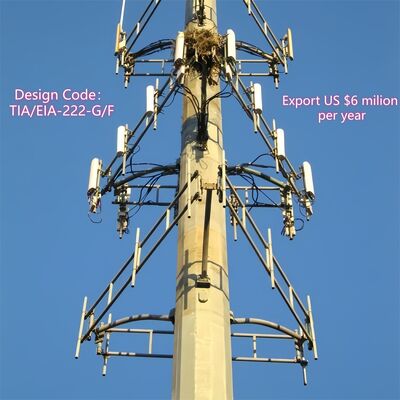

1. Design Code ANSI/TIA-222-G/H/F
Structure Steel
2. Grade Mild Steel High Tensile Steel
GB/T 700:Q235B, Q235C,Q235D GB/T1591:Q345B, Q345C,Q3455D
ASTM A36 ASTM A572 Gr50
EN10025: S235JR, S235J0,S235J2 EN10025: S355JR, S355J0,S355J2

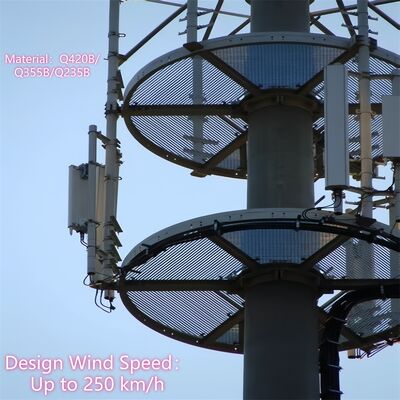

3. Design Wind Speed Up to 250 km/h
4. Allowable deflection 0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa) 360~510 470~630
6. Yield strength (t≤16mm) (Mpa) 355 235
7. Elongation (%) 20 24
8. Impact strength KV (J) 27(20°C)---Q235B(S235JR) 27(20°C)---Q345B(S355JR)
27(0°C)---Q235C(S235J0) 27(0°C)---Q345C(S355J0)
27(-20°C)---Q235D(S235J2) 27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts ISO 898-1
10.2 Nuts ISO 898-2
10.3 Washers ISO 6507-1
11. Standards for Dimensions
11.1 Bolts DIN7990, DIN931, DIN933
11.2 Nuts ISO4032, ISO4034
11.3 Washers DIN7989, DIN127B, ISO7091
Welding
12. Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)

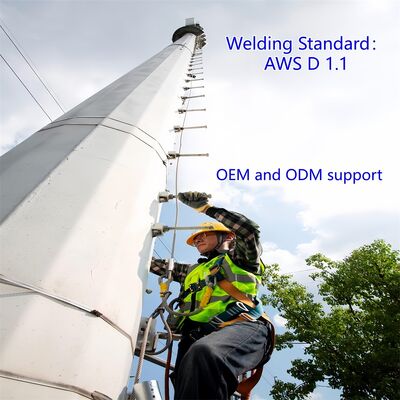

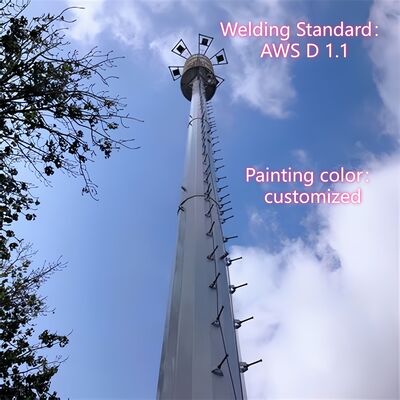

13. Standard AWS D1.1
Marking
14. Method of marking of the members Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts ISO 1461 or ASTM A153
Test
17. Factory test Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending,
Preece test,Hammer test
Capacity
18. Maximum Production Capacity 50,000 TON per annum

Core Structural & Design Features

  • Single-shaft shape: Typically rolled-steel cylindrical (or welded polygonal) shafts, with diameters ranging 0.5–2m (scaled by tower height).

  • Height range: 10–60m (customizable for 5G microstations or urban communication hubs).

  • Integrated components: Built-in internal climbing ladders (with fall-arrest systems), external antenna brackets, and optional camouflage (e.g., billboard wraps).

  • Tapered design: Slightly narrower at the top to optimize wind load resistance (suitable for urban wind conditions up to 180km/h).

⇔What is the main body of monopole tower?

Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh 0

⇔What is the Bottom Flange, Ladder and Platform of monopole tower?

Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh 1

⇔What is the main body of monopole tower after Hot Dip Galvanized?

Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh 2

Please Click Here  For More Information!!!

Production Process

Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh 3

Gular customers



Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh 4



Certifications

Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh 5

Our Services



Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh 6
