28M Bionic Tree Tower combining natural tree aesthetics with advanced modular construction for versatile infrastructure deployment

Grande immagine : 28M Bionic Tree Tower combining natural tree aesthetics with advanced modular construction for versatile infrastructure deployment

Dettagli:

Luogo di origine:	Cina
Marca:	Jiayao
Certificazione:	ISO9001:2008 COC
Numero di modello:	Torre dell' albero bionica

Termini di pagamento e spedizione:

Quantità di ordine minimo:	4 tonnellate
Prezzo:	US$1400-1600,1-100Tons;US$1000-1200,>=100 Tons
Imballaggi particolari:	Imballato in scatole di legno o imballato con lamiere zincate
Tempi di consegna:	15 giorni
Termini di pagamento:	L/C, T/T
Capacità di alimentazione:	500 tonnellate al mese

Contatto Ora chiacchieri

28M Bionic Tree Tower combining natural tree aesthetics with advanced modular construction for versatile infrastructure deployment

descrizione

Nome del prodotto:	Torre bionica per alberi da 28 metri che combina l'estetica naturale dell'albero	Materiale:	ASTM A36 A572 Gr50
Dadi e bulloni:	Grado 8.8/6.8/4.8	Certificazione:	ISO9001:2008 COC
Altezza:	9-40 metri	Standard:	ANSI/TIA-222-G/H/F, EN 1991-1-4 e EN 1993-3-1
Velocità del vento:	0-300 km/h	Norma di galvanizzazione:	ASTM A123/ISO 1461
Impatto ambientale:	Ecologico	Trattamento anticorrosivo:	zincato a caldo
Tutta la vita:	Più di 20 anni	Saldatura:	AWS D1.1
Tipo:	Struttura dell'albero artificiale	Personalizzazione:	Disponibili in diversi colori e dimensioni
Applicazione:	Adatto sia per le zone urbane che per quelle rurali	Rumore operativo:	bassa emissione acustica
Posizione di installazione:	Ambienti urbani	Posizione di installazione:	Aree urbane e centri urbani
Posizione:	Ambienti urbani
Evidenziare:	28M bionic tree tower modular construction , bionic tree tower versatile infrastructure , natural tree aesthetics modular tower

28M Bionic Tree Tower combining natural tree aesthetics with advanced modular construction for versatile infrastructure deployment 0

JIAYAO CO., LTD

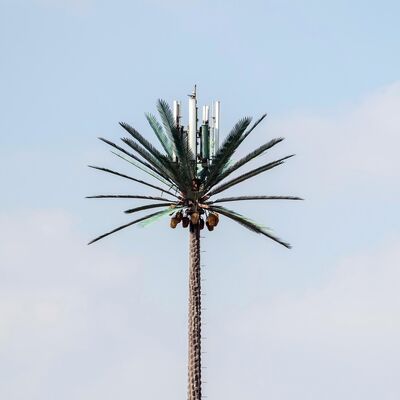

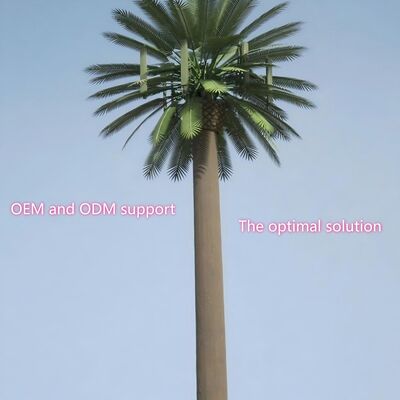

Bionic tree tower, also known as an artificial tree tower, is an innovative structure designed to replicate the look of natural trees while serving critical infrastructure purposes. Unlike traditional towers that often stand out visually, this tower blends seamlessly into landscapes, making it a preferred choice for areas where aesthetic harmony and functionality are both priorities.

1.Specifications

Design

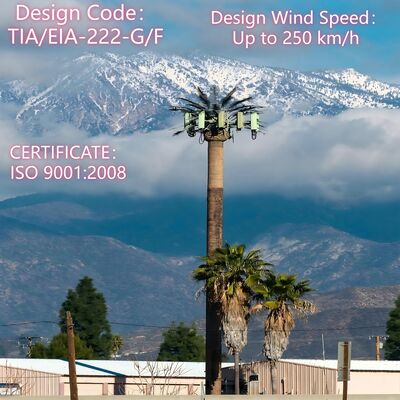

1. Design Code	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1

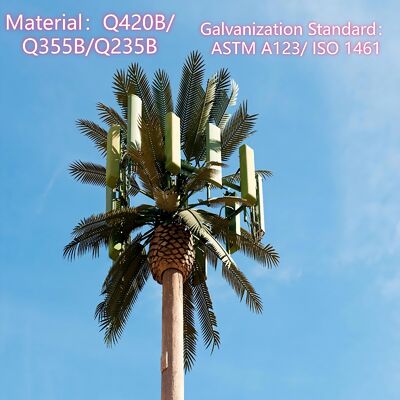

Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q355B, Q355C,Q355D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2

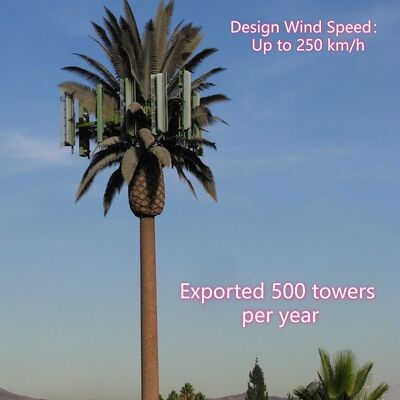

3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)

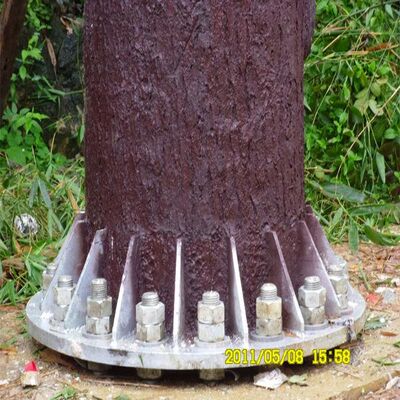

Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153

Core Structural & Design Features

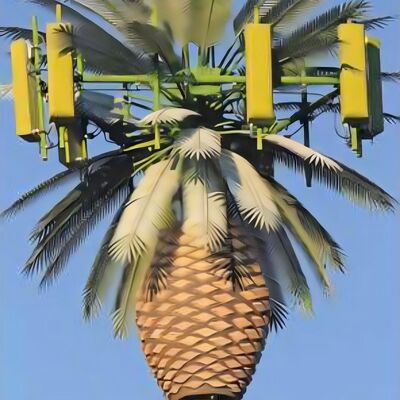

Tree-Like Appearance: It features artificial trunks, branches, and even leaves made from durable materials like fiberglass or high-strength plastics, closely resembling real trees in shape, color, and texture.
Modular Construction: The tower is built with modular components, allowing customization in height (typically 5m to 30m) and “tree species” to match local flora, such as pine, palm, or oak trees.
Integrated Functionality: Equipped with hidden platforms, antenna mounts, and cable management systems to support telecommunications equipment (5G/4G antennas, microwave devices), environmental sensors, or even small wind/solar energy harvesters.

Key Materials & Manufacturing Standards

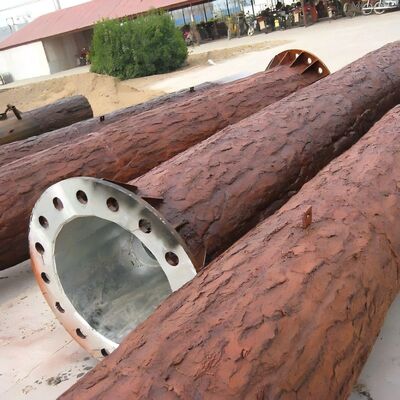

Primary Materials: High-quality fiberglass, UV-resistant plastics, and galvanized steel for the internal support structure, ensuring both durability and corrosion resistance.
Manufacturing Compliance: Follows industry standards like ASTM D256 for impact resistance of plastic components and ISO 1461 for galvanization, guaranteeing long-term performance in outdoor conditions.
Aesthetic Details: Leaves and branches are designed to withstand extreme weather (high winds, heavy snow) and maintain colorfastness for years, using advanced pigmentation techniques.

2.Product Detail

Please Click Here For More Information!!!!!!

3.Packaging & Shipping

4.Cooperation Customers

5.Certifications

6.Our Services

JIAYAO CO., LTD. is a professional telecom tower manufacturer and approved by ISO9001. We are committed to providing customers with the most optimized solutions and the best communication tower. Many products have been exported to USA, Europe and other 55 different counties.
We specialize in designing and manufacturer of angle steel tower, tube steel tower, monopole tower, pine tree tower, guyed tower and guard tower. Our departments include design, R&D, inspection, laboratory, QC, galvanization and steel tower departments. Our raw materials come from famous steel mills in China: HBIS Group, Baowu Steel Group, Shougang Group.

If you need it, we will welcome you 24 hours a day!
